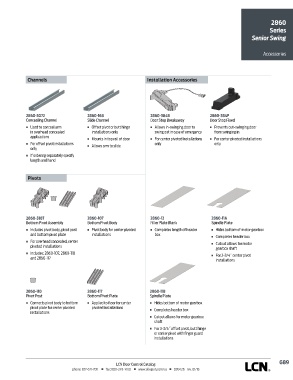

2860
Series
Senior Swing

Accessories

Channels Installation Accessories

2860-3072 2860-168 2860-384B 2860-384F
Concealing Channel Slide Channel Door Stop Breakaway Door Stop Fixed
n Used to conceal arm n Offset pivot or butt hinge n Allows in-swinging door to n Prevents out-swinging door
in overhead concealed installations only swing out in case of emergency from swinging in
applications n Mounts in top rail of door n For center pivoted installations n For center pivoted installations
n For offset pivot installations n Allows arm to slide only only
only
n If ordering separately specify
length and hand

Pivots

2860-3107 2860-107 2860-12 2860-11A
Bottom Pivot Assembly Bottom Pivot Body Filler Plate Blank Spindle Plate
n Includes pivot body, pivot post n Pivot body for center pivoted n Completes length of header n Hides bottom of motor gearbox
and bottom pivot plate installations box n Completes header box
n For overhead concealed, center n Cutout allows for motor
pivoted installations
gearbox shaft
n Includes: 2860-107, 2860-110 n For 2-3/4˝ center pivot
and 2860-117 installations

2860-110 2860-117 2860-11B
Pivot Post Bottom Pivot Plate Spindle Plate
n Connects pivot body to bottom n Applied to floor for center n Hides bottom of motor gearbox
pivot plate for center pivoted pivoted installations n Completes header box
installations
n Cutout allows for motor gearbox
shaft
n For 3-3/4˝ offset pivot, butt hinge
or center pivot with finger guard
installations

G89
