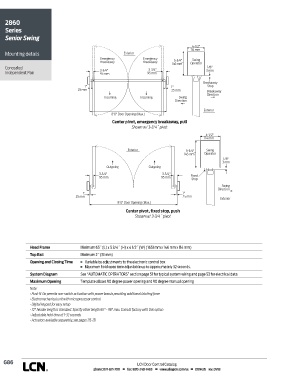

2860
Series
Senior Swing

4-1/2"
114 mm
Mounting details Exterior
Emergency Emergency 5-3/4" Swing
Breakaway Breakaway 146 mm Operator
Concealed 3-3/4" 1/8"
Independent Pair 3-3/4" 95 mm 3 mm
95 mm
Breakaway
1" 1" Stop
25 mm 25 mm Breakaway
Direction
Incoming Incoming Swing
Direction
Exterior
8'0" Door Opening (Max.)
Center pivot, emergency breakaway, pull
Shown w/ 3-3/4˝ pivot

4-1/2"
114 mm
Exterior 5-3/4" Swing
146 mm Operator
1/8"
3 mm
Outgoing Outgoing
3-3/4" 3-3/4" Fixed
95 mm 95 mm Stop
Swing
Direction
1" 1"
25 mm 25 mm
Exterior
8'0" Door Opening (Max.)
Center pivot, fixed stop, push
Shown w/ 3-3/4˝ pivot

Head Frame Minimum 65˝ (L) x 5 3/4˝ (H) x 4 1/2˝ (W) (1651 mm x 146 mm x 114 mm)
Top Rail Minimum 2˝ (51 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds.
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Note:
• Push N' Go permits non-switch activation with power boosts providing additional latching force
• Electromechanical unit with microprocessor control
• Digital keypad for easy setup
• 72" header length is standard. Specify other length 65" - 98" max. Consult factory with this option
• Adjustable hold time of 1-32 seconds
• Actuators available separately, see pages 115-131
