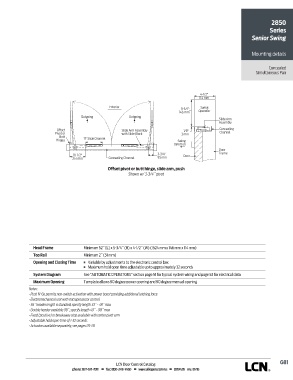

Page 345 - Herrajes Patricios - Catalogo LCN

2850
Series
Senior Swing

Mounting details

Concealed
Simultaneous Pair

4-1/2"
114 mm
Exterior Swing
5-3/4"
146 mm Operator
Outgoing Outgoing
Slide Arm
Assembly
Offset Slide Arm Assembly 1/8" Concealing
Pivot or with Slide Block 3 mm Channel
Butt
Hinges 11" Slide Channel Swing
Direction
Door
10-1/2" 3-3/4" Door Frame
257 mm Concealing Channel 95 mm
Offset pivot or butt hinge, slide arm, push
Shown w/ 3-3/4˝ pivot

Head Frame Minimum 52˝ (L) x 5-3/4˝ (H) x 4-1/2˝ (W) (1524 mm x 146 mm x 114 mm)
Top Rail Minimum 2˝ (51 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Push N' Go permits non-switch activation with power boost providing additional latching force
• Electromechanical unit with microprocessor control
• 36˝ header length is standard, specify length 33˝ - 49˝ max
• Double header available 98˝, specify length 49˝ - 98˝ max
• Fixed (positive) or breakaway stop available with center pivot arm
• Adjustable hold open time of 1-32 seconds
• Actuators available separately, see pages 115-131
