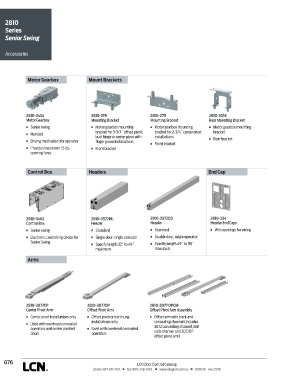

2810
Series
Senior Swing

Accessories

Motor Gearbox Mount Brackets

2810-3454 2810-375 2810-275 2810-3018
Motor Gearbox Mounting Bracket Mounting Bracket Rear Mounting Bracket
n Senior swing n Motor gearbox mounting n Motor gearbox mounting n Motor gearbox mounting
n Handed bracket for 3-3/4˝ offset pivot, bracket for 2-3/4˝ center pivot bracket
butt hinge or center pivot with installations n Rear bracket
n Driving mechanism for operator finger guard installations n Front bracket
n Provides maximum 15 lbs n Front bracket
opening force

Control Box Headers End Cap

2810-3462 2810-3572HL 2810-3572DD 2810-334
Control Box Header Header Header End Caps
n Senior swing n Standard n Standard n Wth openings for wiring
n Electronic controlling device for n Single door, single operator n Double door, single operator
Senior Swing n Specify length 33˝ to 49˝ n Specify length 49˝ to 98˝
maximum maximum

Arms

2810-3077CP 2810-3077OP 2810-3077 OPCM
Center Pivot Arm Offset Pivot Arm Offset Pivot Arm Assembly
n Center pivot installations only n Offset pivot or butt hung n Offset arm with track and
installations only concealing channel (includes
n Used with overhead concealed 3072 concealing channel, 168
operators and center pivoted n Used with overhead concealed slide channel and 3077OP
doors operators
offset pivot arm)

G76 LCN Door Control Catalog
