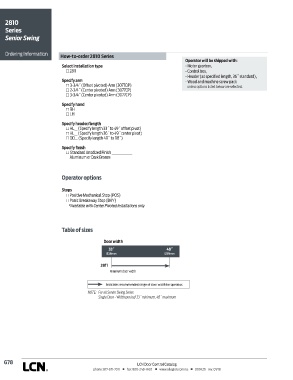

2810
Series
Senior Swing

Ordering Information How-to-order 2810 Series
Operator will be shipped with:
Select installation type - Motor gearbox,
2811 - Control box,
- Header (at specified length, 36˝ standard),
Specify arm - Wood and machine screw pack
3-3/4˝ (Offset pivoted) Arm (3077OP) unless options listed below are selected.
2-3/4˝ (Center pivoted) Arm (3077CP)
3-3/4˝ (Center pivoted) Arm (3077CP)
Specify hand
RH
LH

Specify header/length
HL__ (Specify length 33˝ to 49˝ offset pivot)
HL__ (Specify length 36˝ to 49˝ center pivot)
DD__ (Specify length 49˝ to 98˝)

Specify finish
Standard Anodized Finish ______________
Aluminum or Dark Bronze

Operator options

Stops
Positive Mechanical Stop (POS)
Panic Breakaway Stop (BKY)
*Available with Center Pivoted installations only

Table of sizes

Door width
33˝ 48˝
838mm 1219mm
2811
Minimum door width

Indicates recommended range of door width for operator.
NOTE: For all Senior Swing Series
Single Door - Width per leaf 33˝ minimum, 48˝ maximum

G78 LCN Door Control Catalog
