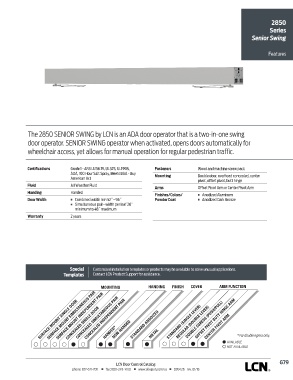

Page 343 - Herrajes Patricios - Catalogo LCN

2850
Series
Senior Swing

Features

The 2850 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing
door operator. SENIOR SWING operator when activated, opens doors automatically for
wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Certifications Grade 1 - ANSI A156.19, UL325, UL1998, Fasteners Wood and machine screw pack
ADA, 100 Hour Salt Spray, Meets BAA - Buy Mounting Double door, overhead concealed, center
American Act pivot, offset pivot, butt hinge
Fluid All Weather Fluid
Arms Offset Pivot Arm or Center Pivot Arm
Handing Handed
Finishes/Colors/ n Anodized Aluminum
Door Width n Combined width min 52˝ - 96˝ Powder Coat n Anodized Dark Bronze
n Simultaneous pair - width per leaf 26˝
minimum to 48˝ maximum
Warranty 2 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING HANDING FINISH COVER ARM FUNCTION
SURFACE MOUNT SIMULTANEOUS PAIR
SURFACE MOUNT INDEPENDENT PAIR
CONCEALED INDEPENDENT PAIR
SURFACE MOUNT SINGLE DOOR CONCEALED SIMULTANEOUS PAIR NON-HANDED STANDARD ANODIZED STANDARD (SINGLE LEVER) OFFSET PIVOT BUTT HINGE ARM
DOUBLE EGRESS (PUSH/PULL)
REGULAR (DOUBLE LEVER)
CONCEALED SINGLE DOOR
CENTER PIVOT ARM
HANDED*
METAL
* For double egress only.
AVAILABLE
NOT AVAILABLE

G79
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
