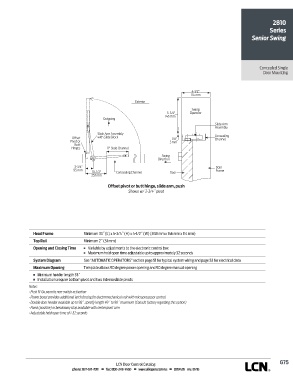

Page 339 - Herrajes Patricios - Catalogo LCN

2810
Series
Senior Swing

Concealed Single
Door Mounting

4-1/2"
114 mm
Exterior
Swing
5-3/4" Operator
146 mm
Outgoing
Slide Arm
Assembly
Slide Arm Assembly
Offset with Slide Block 1/8" Concealing
Channel
Pivot or 3 mm
Butt
Hinges 11" Slide Channel
Swing
Direction
3-3/4" Door
95 mm 10-1/2" Concealing Channel Door Frame
257 mm

Offset pivot or butt hinge, slide arm, push
Shown w/ 3-3/4˝ pivot

Head Frame Minimum 33˝ (L) x 5-3/4˝ (H) x 4-1/2˝ (W) (838 mm x 146 mm x 114 mm)
Top Rail Minimum 2˝ (51 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
n Minimum header length 33˝
n Installations require bottom pivot and two intermediate pivots
Notes:
• Push N' Go permits non-switch activation
• Power boost provides additional latch forcing for electromechanical unit with microprocessor control
• Double door header available up to 98˝, specify length 49˝ to 98˝ maximum (Consult factory regarding this option)
• Fixed (positive) or breakaway stop available with center pivot arm
• Adjustable hold open time of 1-32 seconds

G75
