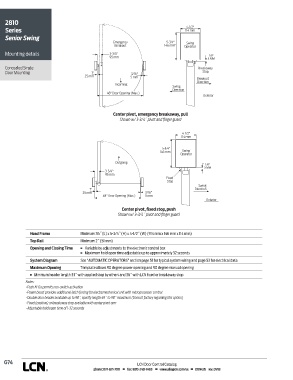

2810
4-1/2"
Series 114 mm
Senior Swing
Emergency 5-3/4" Swing
Breakout 146 mm Operator
Mounting details 3-3/4"
95 mm 1/8"
3 MM
Concealed Single Breakaway
Door Mounting 1" 3/16" Stop
25 mm 5 mm Breakout
Direction
Incoming
Swing
Direction
48" Door Opening (Max.)
Exterior

Center pivot, emergency breakaway, pull
Shown w/ 3-3/4˝ pivot and finger guard

4-1/2"
114 mm

5-3/4"
146 mm Swing
Operator
Outgoing
1/8"
3 MM
3-3/4"
95 mm
Fixed
Stop
Swing
1" Direction
25 mm 3/16"
48" Door Opening (Max.) 5 mm
Exterior
Center pivot, fixed stop, push
Shown w/ 3-3/4˝ pivot and finger guard

Head Frame Minimum 36˝ (L) x 5-3/4˝ (H) x 4-1/2˝ (W) (914 mm x 146 mm x 114 mm)
Top Rail Minimum 2˝ (51 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
n Minimum header length 33˝ with applied stop by others and 36˝ with LCN fixed or breakaway stop
Notes:
• Push N' Go permits non-switch activation
• Power boost provides additional latch forcing for electromechanical unit with microprocessor control
• Double door header available up to 98˝, specify length 49˝ to 98˝ maximum (Consult factory regarding this option)
• Fixed (positive) or breakaway stop available with center pivot arm
• Adjustable hold open time of 1-32 seconds

G74 LCN Door Control Catalog
LCN Door Control Catalog
