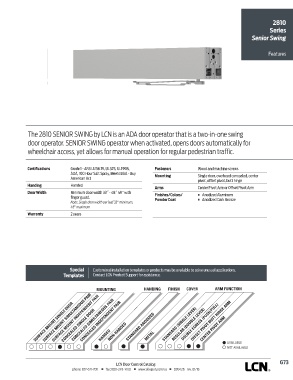

2810
Series
Senior Swing

Features

The 2810 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing
door operator. SENIOR SWING operator when activated, opens doors automatically for
wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Certifications Grade 1 - ANSI A156.19, UL325, UL1998, Fasteners Wood and machine screws
ADA, 100 Hour Salt Spray, Meets BAA - Buy Mounting Single door, overhead concealed, center
American Act pivot, offset pivot, butt hinge
Handing Handed
Arms Center Pivot Arm or Offset Pivot Arm
Door Width Minimum door width 33˝ - 48˝ 49" with Finishes/Colors/ n Anodized Aluminum
finger guard. Powder Coat n Anodized Dark Bronze
Note: Single door width per leaf 33" minimum,
48" maximum
Warranty 2 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING HANDING FINISH COVER ARM FUNCTION
SURFACE MOUNT SIMULTANEOUS PAIR
SURFACE MOUNT INDEPENDENT PAIR
CONCEALED INDEPENDENT PAIR
SURFACE MOUNT SINGLE DOOR CONCEALED SIMULTANEOUS PAIR NON-HANDED STANDARD ANODIZED STANDARD (SINGLE LEVER) OFFSET PIVOT BUTT HINGE ARM
DOUBLE EGRESS (PUSH/PULL)
REGULAR (DOUBLE LEVER)
CONCEALED SINGLE DOOR
CENTER PIVOT ARM

HANDED
METAL
AVAILABLE
NOT AVAILABLE

G73
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
