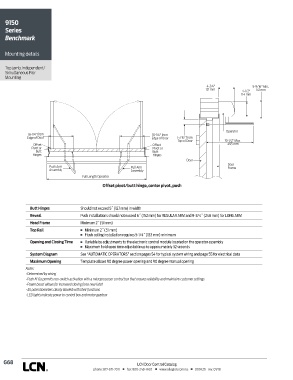

Page 332 - Herrajes Patricios - Catalogo LCN

9150
Series
Benchmark

Mounting details

Top jamb, Independent/
Simultaneous Pair
Mounting
4-3/4" 5-9/16" Min.
121 mm 4-1/2" 141 mm
114 mm

Operator
18-1/4" from 18-1/4" from
Edge of Door Edge of Door 1-7/16" from
Top of Door 19-1/2" Max.
Offset Offset 495 mm
Pivot or Pivot or
Butt Butt
Hinges Hinges
Door
Door
Push Arm Pull Arm Frame
Assembly Assembly
Full Length Operator
Offset pivot/butt hinge, center pivot, push

Butt Hinges Should not exceed 5˝ (127 mm) in width
Reveal Push installations should not exceed 6˝ (152 mm) for REGULAR ARM and 9-3/4˝ (248 mm) for LONG ARM
Head Frame Minimum 2˝ (51 mm)
Top Rail n Minimum 2˝ (51 mm)
n Flush ceiling installation requires 5-1/4˝ (133 mm) minimum
Opening and Closing Time n Variable by adjustments to the electronic control module located on the operator assembly
n Maximum hold open time adjustable up to approximately 32 seconds
System Diagram See “AUTOMATIC OPERATORS” section pages 54 for typical system wiring and page 55 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Determined by wiring
• Push N' Go permits non-switch activation with a microprocessor control box that ensures reliability and maintains customer settings
• Power boost allows for increased closing force near latch
• All potentiometers clearly labeled with their functions
• LED lights indicate power to control box and motor gearbox

G68 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
