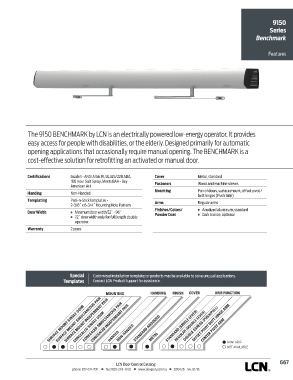

9150
Series
Benchmark

Features

The 9150 BENCHMARK by LCN is an electrically powered low-energy operator. It provides
easy access for people with disabilities, or the elderly. Designed primarily for automatic
opening applications that occasionally require manual opening. The BENCHMARK is a

cost-effective solution for retrofitting an activated or manual door.

Certifications Grade 1 - ANSI A156.19, UL325/228 ADA, Cover Metal, standard
100 Hour Salt Spray, Meets BAA - Buy Fasteners Wood and machine screws
American Act
Mounting Pair of doors, surface mount, offset pivot /
Handing Non-Handed butt hinges (Push Side)
Templating Peel-n-Stick templates - Arms Regular arms
2-3/8˝ x 6-3/4˝ Mounting Hole Pattern
Finishes/Colors/ n Anodized aluminum, standard
Door Width n Minimum door width 52˝ - 96˝ Powder Coat n Dark bronze, optional
n 72˝ door width only for full length double
operator
Warranty 2 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING HANDING FINISH COVER ARM FUNCTION
SURFACE MOUNT SIMULTANEOUS PAIR
SURFACE MOUNT INDEPENDENT PAIR
CONCEALED INDEPENDENT PAIR
SURFACE MOUNT SINGLE DOOR CONCEALED SIMULTANEOUS PAIR NON-HANDED STANDARD ANODIZED STANDARD (SINGLE LEVER) OFFSET PIVOT BUTT HINGE ARM
DOUBLE EGRESS (PUSH/PULL)
REGULAR (DOUBLE LEVER)
CONCEALED SINGLE DOOR
CENTER PIVOT ARM
HANDED
METAL
AVAILABLE
NOT AVAILABLE

G67
