9140
Series
4-3/4"
Benchmark 121 mm 4-1/2"
114 mm

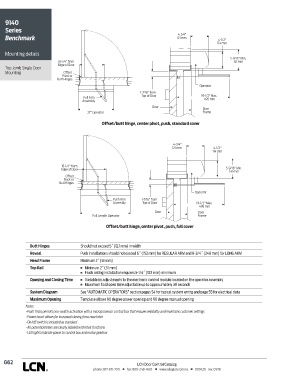

Mounting details
5-9/16" Min.
18-1/4" from 141 mm
Edge of Door
Top Jamb Single Door
Mounting Offset
Pivot or
Butt Hinges
Operator
1-7/16" from
Pull Arm Top of Door 19-1/2" Max.
495 mm
Assembly
Door
Door
27" Operator Frame
Offset/butt hinge, center pivot, push, standard cover

4-3/4"
121 mm 4-1/2"
114 mm

18-1/4" from
Edge of Door 5-9/16" Min.
141 mm
Offset
Pivot or
ButtHinges
Operator
Push Arm 1-7/16" from
Assembly Top of Door 19-1/2" Max.
495 mm
Door Door
Full Length Operator Frame
Offset/butt hinge, center pivot, push, full cover

Butt Hinges Should not exceed 5˝ (127 mm) in width
Reveal Push installations should not exceed 6˝ (152 mm) for REGULAR ARM and 9-3/4˝ (248 mm) for LONG ARM
Head Frame Minimum 2˝ (51 mm)
Top Rail n Minimum 2˝ (51 mm)
n Flush ceiling installation requires 5-1/4˝ (133 mm) minimum
Opening and Closing Time n Variable by adjustments to the electronic control module located on the operator assembly
n Maximum hold open time adjustable up to approximately 30 seconds
System Diagram See “AUTOMATIC OPERATORS” section pages 54 for typical system wiring and page 55 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Push 'N Go permits non-switch activation with a microprocessor control box that ensures reliability and maintains customer settings
• Power boost allows for increased closing force near latch
• On/off switch is included as standard
• All potentiometers are clearly labeled with their functions
• LED lights indicate power to control box and motor gearbox

G62 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
