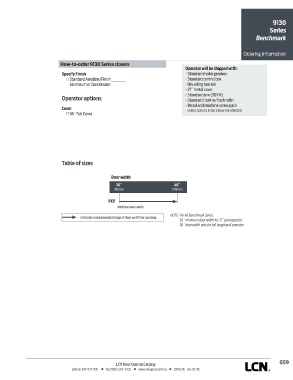

9130
Series
Benchmark

Ordering Information

How-to-order 9130 Series closers
Operator will be shipped with:
Specify Finish - Standard motor gearbox
Standard Anodized Finish __________ - Standard control box
Aluminum or Dark Bronze - Mounting bracket
- 27˝ metal cover
- Standard arm (3077t)
Operator options - Standard track w/track roller
- Wood and machine screw pack
Cover unless options listed below are selected
36˝ Full Cover

Table of sizes

Door width
30˝ 48˝
762mm 1219mm

9131
Minimum door width

NOTE: For All Benchmark Series.
Indicates recommended range of door width for operator.
30˝ minimum door width for 27˝ pull operator.
36˝ door width only for full length pull operator.

G59
LCN Door Control Catalog
