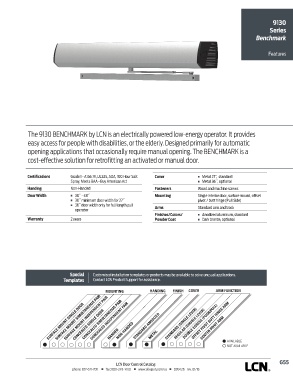

9130
Series
Benchmark

Features

The 9130 BENCHMARK by LCN is an electrically powered low-energy operator. It provides
easy access for people with disabilities, or the elderly. Designed primarily for automatic
opening applications that occasionally require manual opening. The BENCHMARK is a

cost-effective solution for retrofitting an activated or manual door.

Certifications Grade 1 - A156.19, UL325, ADA, 100 Hour Salt Cover n Metal 27˝, standard
Spray, Meets BAA - Buy American Act n Metal 36˝, optional
Handing Non-Handed Fasteners Wood and machine screws
Door Width n 30˝ - 48˝ Mounting Single interior door, surface mount, offset
n 30˝ minimum door width for 27˝ pivot / butt hinge (Pull Side)
n 36˝ door width only for full length pull Arms Standard arm and track
operator
Finishes/Colors/ n Anodized aluminum, standard
Warranty 2 years Powder Coat n Dark bronze, optional

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING HANDING FINISH COVER ARM FUNCTION
SURFACE MOUNT SIMULTANEOUS PAIR
SURFACE MOUNT INDEPENDENT PAIR
CONCEALED INDEPENDENT PAIR
SURFACE MOUNT SINGLE DOOR CONCEALED SIMULTANEOUS PAIR NON-HANDED STANDARD ANODIZED STANDARD (SINGLE LEVER) OFFSET PIVOT BUTT HINGE ARM
DOUBLE EGRESS (PUSH/PULL)
REGULAR (DOUBLE LEVER)
CONCEALED SINGLE DOOR
CENTER PIVOT ARM
HANDED
METAL
AVAILABLE
NOT AVAILABLE

G55
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
