Electro-
mechanical
Powered
Systems

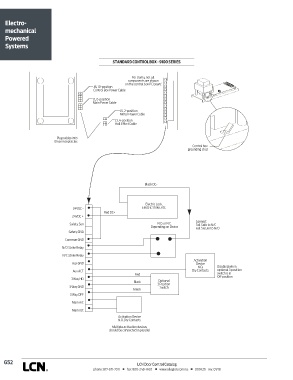

STANDARD CONTROL BOX - 9100 SERIES

For clarity, not all
components are shown
on the control box PC board
J8, 10-position
Control Box Power Cable
J1, 6-position
Main Power Cable
J5, 2-position
Motor Power Cable
J3, 4-position
Hall Effect Cable

Plug cables into
these receptacles
Control box
grounding stud

Black DC-

Electric Lock,
24VDC - Electric Strike, etc.
Red DC+
24VDC +
Safety Sen N.O. or N.C. Connect
Fail Safe to N/C
Depending on Device Fail Secure to N/O
Safety GND
Common GND
N/O Strike Relay
N/C Strike Relay
Activation
Aux GND Device
N.O. Disabled when
Aux ACT Dry Contacts optional 3 position
Red switch is in
3 Way HO Off position
Black Optional
3 Way GND 3 Position
Switch
Green
3 Way OFF
Main Act
Main Act
Activation Device
N.O. Dry Contacts
Multiple activation devices
should be connected in parallel

G52 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
