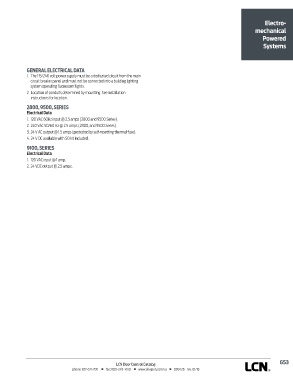

Electro-
mechanical
Powered
Systems

GENERAL ELECTRICAL DATA
1. The 115/240 volt power supply must be a dedicated circuit from the main
circuit breaker panel and must not be connected into a building lighting
system operating fluorescent lights.
2. Location of conduits determined by mounting. See installation
instructions for location.
2800, 9500, SERIES
Electrical Data
1. 120 VAC 60Hz input @ 2.5 amps (2800 and 9500 Series).
2. 240 VAC 50/60 Hz @ 2.5 amps (2800, and 9500 Series).
3. 24 V AC output @ 1.5 amps (protected by self-resetting thermal fuse).
4. 24 V DC available with SO kit included.

9100, SERIES
Electrical Data
1. 120 VAC input @ 1 amp.
2. 24 VDC output @ 2.5 amps.

G53
