9130
Series 6" Min.
Benchmark 4-3/4" From Top of Door
152 mm
121 mm Opening to Ceiling

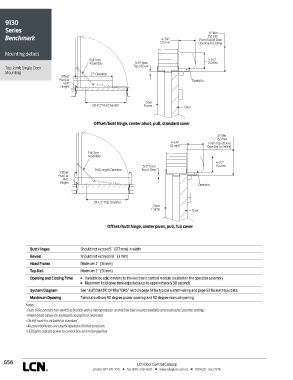

Mounting details
Pull Arm 4-1/2"
Assembly 5/8" from 114 mm
Top Jamb Single Door Top of Door
Mounting 27" Operator
Offset
Pivot or Operator
Butt
Hinges

Door
28-1/2" Pull Channel Frame Door

Offset/butt hinge, center pivot, pull, standard cover

6" Min.
152 mm
4-3/4" From Top of Door
121 mm Opening to Ceiling
Pull Arm
Assembly
4-1/2"
5/8" from 114 mm
Full Length Operator Top of Door
Offset
Pivot or
Butt
Hinges
Operator

28-1/2" Pull Channel
Door
Frame Door

Offset/butt hinge, center pivot, pull, full cover

Butt Hinges Should not exceed 5˝ (127 mm) in width
Reveal Should not exceed 1/8˝ (3 mm)
Head Frame Minimum 2˝ (51 mm)
Top Rail Minimum 2˝ (51 mm)
Opening and Closing Time n Variable by adjustments to the electronic control module located on the operator assembly
n Maximum hold open time adjustable up to approximately 30 seconds
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Push 'N Go permits non-switch activation with a microprocessor control box that ensures reliability and maintains customer settings
• Power boost allows for increased closing force near latch
• On/off switch is included as standard
• All potentiometers are clearly labeled with their functions
• LED lights indicate power to control box and motor gearbox
