Electro-
mechanical
Powered
Systems

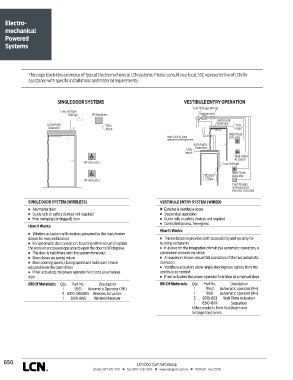

This page illustrates examples of typical Electromechanical LCN systems. Please consult your local SSC representative of LCN for
assistance with specific installations and material requirements.

SINGLE DOOR SYSTEMS VESTIBULE ENTRY OPERATION
Low Voltage Wiring
Low Voltage
Wiring RF Receiver Sequencer
Automatic
Automatic 120v Operator 120v
Operator Input Input
Wall Plate
Note: 120V AC Input Actuator
required to both operators
Automatic
120v Operator
Input
Wall Plate
Actuator
RF Actuator Low Voltage
Wall Plate
Electric Actuator
RF Actuator Strike
Card Reader
w/keypad as
Exterior Actuator
SINGLE DOOR SYSTEM (WIRELESS) VESTIBULE ENTRY SYSTEM (WIRED)
n An interior door n Exterior & vestibule doors
n Guide rails or safety devices not required n Sequential operation
n Free swinging (or dogged) door n Guide rails or safety devices not required
n Controlled access, free egress
How It Works:
How It Works:
n Wireless actuators with receiver, powered by the transformer
allows for easy installation n This installation provides both accessibility and security for
n For automatic door operation, touching either actuator signals building occupants
the receiver and power operator to open the door to 90 degrees n It allows for the integration of multiple automatic operators, a
n The door is held there until the system times out card reader and electric strike
n Door closes via spring return n A sequencer allows sequential operation of the two automatic
n Door opening speed, closing speed and hold open time is operators
adjustable on the control box n Vestibule actuators allow single door ingress/ egress from the
n If not actuated, the power operator functions as a manual vestibule as needed
door n If not actuated the power operator functions as a manual door
Bill Of Materials: Qty. Part No. Description Bill Of Materials: Qty. Part No. Description
1 9531 Automatic Operator (RH) 1 9542 Automatic operator (RH)
2 8310-3853WS Wireless Actuators 1 9531 Automatic operator (RH)
1 8310-865 Wireless Receiver 3 8310-853 Wall Plate Actuators
1 8310-849 Sequencer
Other products from Von Duprin and
Schlage Electronics

G50 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
