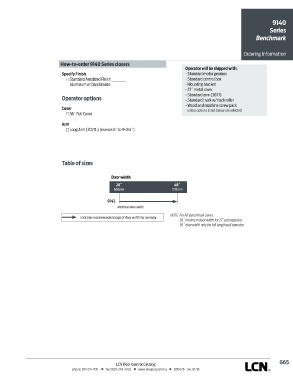

9140
Series
Benchmark

Ordering Information

How-to-order 9140 Series closers
Operator will be shipped with:
Specify Finish - Standard motor gearbox
Standard Anodized Finish __________ - Standard control box
Aluminum or Dark Bronze - Mounting bracket
- 27˝ metal cover
- Standard arm (3077)
Operator options - Standard track w/track roller
- Wood and machine screw pack
Cover unless options listed below are selected
36˝ Full Cover

Arm
Long Arm (3077L) (reveals 6˝ to 9-3/4˝)

Table of sizes

Door width
26˝ 48˝
660mm 1219mm

9142
Minimum door width

NOTE: For All Benchmark Series.
Indicates recommended range of door width for operator.
30˝ minimum door width for 27˝ pull operator.
36˝ door width only for full length pull operator.

G65
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
