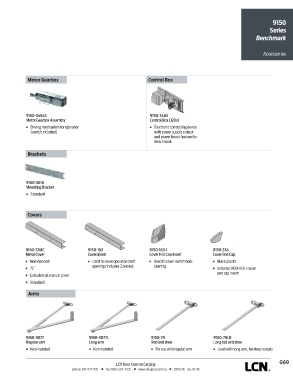

9150
Series
Benchmark

Accessories

Motor Gearbox Control Box

9150-3454S 9150-3462
Motor Gearbox Assembly Control Box (120v)
n Driving mechanism for operator n Electronic controlling device
(switch included) with power supply output
and power boost feature for
Benchmark

Brackets

9150-3018
Mounting Bracket
n Standard

Covers

9150-72MC 9150-163 9150-163-1 9150-334
Metal Cover Cover Insert Cover End Cap Insert Cover End Cap
n Non-handed n Used to cover operator shaft n Used to cover switch hole n Black plastic
n 72˝ opening (includes 2 pieces) opening n Includes 9130-163-1 cover
and cap insert
n Extruded aluminum cover
n Standard

Arms

9150-3077 9150-3077L 9150-79 9150-79LR
Regular arm Long arm Rod and shoe Long rod and shoe
n Non-handed n Non-handed n For use with regular arm n Used with long arm, for deep reveals

G69
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
