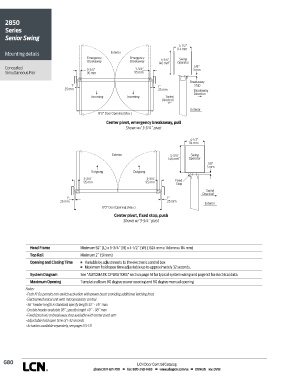

Page 344 - Herrajes Patricios - Catalogo LCN

2850
Series
Senior Swing
4-1/2"
114 mm
Mounting details Exterior
Emergency Emergency Swing
Breakaway Breakaway 5-3/4"
146 mm Operator
1/8"
Concealed 3-3/4" 3-3/4" 3 mm
Simultaneous Pair 95 mm 95 mm
Breakaway
1" 1" Stop
25 mm 25 mm Breakaway
Direction
Incoming Incoming Swing
Direction
Exterior
8'0" Door Opening (Max.)
Center pivot, emergency breakaway, pull
Shown w/ 3-3/4˝ pivot

4-1/2"
114 mm

Exterior 5-3/4" Swing
146 mm Operator
1/8"
3 mm
Outgoing Outgoing
3-3/4" 3-3/4"
95 mm 95 mm Fixed
Stop
Swing
Direction
1" 1"
25 mm 25 mm
Exterior
8'0" Door Opening (Max.)
Center pivot, fixed stop, push
Shown w/ 3-3/4˝ pivot

Head Frame Minimum 52˝ (L) x 5-3/4˝ (H) x 4-1/2˝ (W) (1524 mm x 146 mm x 114 mm)
Top Rail Minimum 2˝ (51 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds.
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Push N' Go permits non-switch activation with power boost providing additional latching force
• Electromechanical unit with microprocessor control
• 36˝ header length is standard, specify length 33˝ - 49˝ max
• Double header available 98˝, specify length 49˝ - 98˝ max
• Fixed (positive) or breakaway stop available with center pivot arm
• Adjustable hold open time of 1-32 seconds
• Actuators available separately, see pages 115-131

G80 LCN Door Control Catalog
LCN Door Control Catalog
