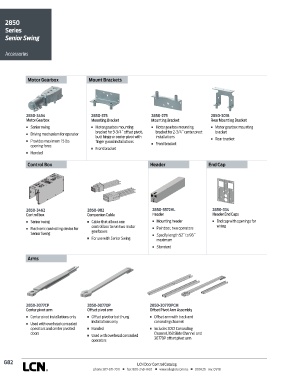

Page 346 - Herrajes Patricios - Catalogo LCN

2850
Series
Senior Swing

Accessories

Motor Gearbox Mount Brackets

2850-3454 2850-375 2850-275 2850-3018
Motor Gearbox Mounting Bracket Mounting Bracket Rear Mounting Bracket
n Senior swing n Motor gearbox mounting n Motor gearbox mounting n Motor gearbox mounting
n Driving mechanism for operator bracket for 3-3/4˝ offset pivot, bracket for 2-3/4˝ center pivot bracket
butt hinge or center pivot with installations n Rear bracket
n Provides maximum 15 lbs finger guard installations n Front bracket
opening force
n Front bracket
n Handed

Control Box Header End Cap

2850-3462 2850-982 2850-3572HL 2850-334
Control box Companion Cable Header Header End Caps
n Senior swing n Cable that allows one n Mounting header n End cap with openings for
control box to run two motor wiring
n Electronic controlling device for gearboxes n Pair door, two operators
Senior Swing n Specify length 52˝ to 98˝
n For use with Senior Swing maximum
n Standard

Arms

2850-3077CP 2850-3077OP 2850-3077OPCM
Center pivot arm Offset pivot arm Offset Pivot Arm Assembly
n Center pivot installations only n Offset pivot or butt hung n Offset arm with track and
installations only concealing channel
n Used with overhead concealed
operators and center pivoted n Handed n Includes 3072 Concealing
doors n Used with overhead concealed Channel, 168 Slide Channel and
operators 30770P offset pivot arm
