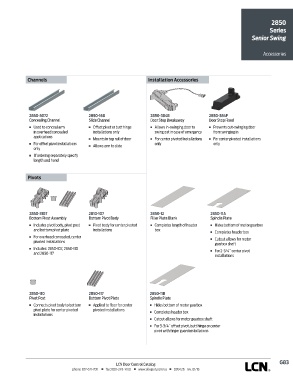

Page 347 - Herrajes Patricios - Catalogo LCN

2850
Series
Senior Swing

Accessories

Channels Installation Accessories

2850-3072 2850-168 2850-384B 2850-384F
Concealing Channel Slide Channel Door Stop Breakaway Door Stop Fixed
n Used to conceal arm n Offset pivot or butt hinge n Allows in-swinging door to n Prevents out-swinging door
in overhead concealed installations only swing out in case of emergency from swinging in
applications n Mounts in top rail of door n For center pivoted installations n For center pivoted installations
n For offset pivot installations n Allows arm to slide only only
only
n If ordering separately specify
length and hand

Pivots

2850-3107 2810-107 2850-12 2850-11A
Bottom Pivot Assembly Bottom Pivot Body Filler Plate Blank Spindle Plate
n Includes pivot body, pivot post n Pivot body for center pivoted n Completes length of header n Hides bottom of motor gearbox
and bottom pivot plate installations box
n Completes header box
n For overhead concealed, center n Cutout allows for motor
pivoted installations gearbox shaft
n Includes: 2850-107, 2850-110 n For 2-3/4˝ center pivot
and 2850-117
installations

2850-110 2850-117 2850-11B
Pivot Post Bottom Pivot Plate Spindle Plate
n Connects pivot body to bottom n Applied to floor for center n Hides bottom of motor gearbox
pivot plate for center pivoted pivoted installations n Completes header box
installations
n Cutout allows for motor gearbox shaft
n For 3-3/4˝ offset pivot, butt hinge or center
pivot with finger guard installations

G83
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
