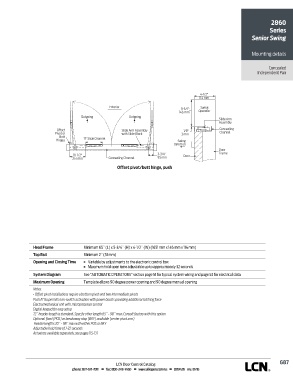

Page 351 - Herrajes Patricios - Catalogo LCN

2860
Series
Senior Swing

Mounting details

Concealed
Independent Pair

4-1/2"
114 mm
Exterior Swing
5-3/4"
146 mm Operator
Outgoing Outgoing
Slide Arm
Assembly
Offset Slide Arm Assembly 1/8" Concealing
Pivot or with Slide Block 3 mm Channel
Butt
Hinges 11" Slide Channel Swing
Direction
Door
10-1/2" 3-3/4" Door Frame
257 mm Concealing Channel 95 mm
Offset pivot/butt hinge, push

Head Frame Minimum 65˝ (L) x 5-3/4˝ (H) x 4-1/2˝ (W) (1651 mm x 146 mm x 114 mm)
Top Rail Minimum 2˝ (51 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Offset pivot installations require a bottom pivot and two intermediate pivots
Push N' Go permits non-switch activation with power boosts providing additional latching force
Electromechanical unit with microprocessor control
Digital keypad for easy setup
72˝ header length is standard. Specify other length 65˝ - 98˝ max. Consult factory with this option
Optional fixed (POS) or breakaway stop (BKY) available (center pivot arm)
Header lengths 70˝ - 98˝ max with either POS or BKY
Adjustable hold time of 1-32 seconds
Actuators available separately, see pages 115-131

G87
