4-3/4"
9530 121 mm
Series 48" Door Opening (Max.)
Swing
Senior Swing 17-3/8" 11-1/2" 6-3/4" 5-3/4" Operator
Pull Channel 292 mm 2-3/4" 171 mm 146 mm
70 mm

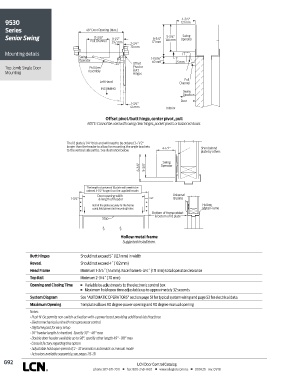

Mounting details
Swing 1-15/16"
Operator 49 mm 1"
Offset 25 mm
Top Jamb Single Door Pull Arm Pivot or
Mounting Assembly Butt
Hinges
Pull
Left Hand Channel
INCOMING
Swing
Direction
Door
1-3/4"
44 mm Interior
Offset pivot/butt hinge, center pivot, pull
NOTE: Cannot be used with swing clear hinges, pocket pivots or balanced doors.

The 18 plate is 1/4" thick and will need to be ordered 3-/1/2"
longer than the header to allow for mounting the angle brackets 4-1/2" Shim behind
to the vertical side jambs. See illustration below. plate by others

Swing
6-3/4" 5-3/4" Operator

The length of universal 18 plate will need to be
ordered 3-1/2" longer than the supplied header
Door opening width Universal
1-3/4" & length of header 18 plate
Install the plate securely to the frame Hollow
using field generated mounting holes Metal Frame
Bottom of frame rabbet
& botom of 18 plate
Stop

Hollow metal frame
Suggested Installation.

Butt Hinges Should not exceed 5˝ (127 mm) in width
Reveal Should not exceed 4˝ (102 mm)
Head Frame Minimum 1-3/4˝ (44 mm). Face frame 6-3/4˝ (171 mm) total operator clearance
Top Rail Minimum 2-3/4˝ (70 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Push N' Go permits non-switch activation with a power boost providing additional latching force
• Electromechanical unit with microprocessor control
• Digital keypad for easy setup
• 36" header length is standard. Specify 33" - 48" max
• Double door header available up to 98", specify other length 49" - 98" max
• Consult factory regarding this option
• Adjustable hold open period of 2 - 32 seconds in automatic or manual mode
• Actuators available separately, see pages 115-131
