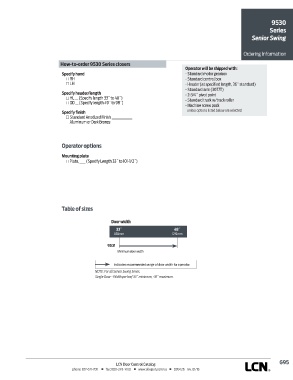

Page 359 - Herrajes Patricios - Catalogo LCN

9530
Series
Senior Swing

Ordering Information

How-to-order 9530 Series closers
Operator will be shipped with:
Specify hand - Standard motor gearbox
RH - Standard control box
LH - Header (at specified length, 36˝ standard)
- Standard arm (3077T)
Specify header/length - 2-3/4˝ pivot point
HL __ (Specify length 33˝ to 48˝) - Standard track w/track roller
DD __ (Specify length 49˝ to 98˝)
- Machine screw pack
Specify finish unless options listed below are selected
Standard Anodized Finish ______________
Aluminum or Dark Bronze

Operator options

Mounting plate
Plate, ____ (Specify Length 33˝ to 101-1/2˝)

Table of sizes

Door width
33˝ 48˝
838mm 1219mm

9531
Minimum door width

Indicates recommended range of door width for operator.
NOTE: For all Senior Swing Series.
Single Door - Width per leaf 33˝ minimum, 48˝ maximum.

G95
