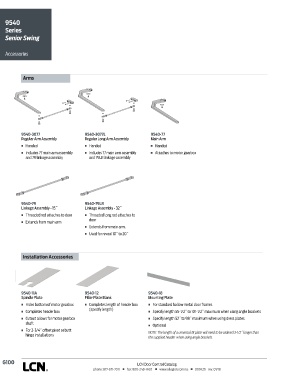

Page 364 - Herrajes Patricios - Catalogo LCN

9540
Series
Senior Swing

Accessories

Arms

9540-3077 9540-3077L 9540-77
Regular Arm Assembly Regular Long Arm Assembly Main Arm
n Handed n Handed n Handed
n Includes 77 main arm assembly n Includes 77 main arm assembly n Attaches to motor gearbox
and 79 linkage assembly and 79LR linkage assembly

9540-79 9540-79LR
Linkage Assembly - 15˝ Linkage Assembly - 32˝
n Threaded rod attaches to door n Threaded long rod attaches to
door
n Extends from main arm
n Extends from main arm.
n Used for reveal 10˝ to 20˝

Installation Accessories

9540-11A 9540-12 9540-18
Spindle Plate Filler Plate Blank Mounting Plate
n Hides bottom of motor gearbox n Completes length of header box n For standard hollow metal door frames
n Completes header box (specify length) n Specify length 55-1/2˝ to 101-1/2˝ maximum when using angle brackets
n Cutout allows for motor gearbox n Specify length 52˝ to 98˝ maximum when using dress plates
shaft n Optional
n For 2-3/4˝ offset pivot or butt NOTE: The length of a universal 18 plate will need to be ordered 3-1/2˝ longer than
hinge installations
the supplied header when using angle brackets.
