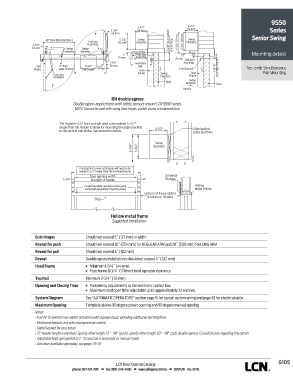

9550
4-1/2"
4-1/2" 114 mm
1-3/4" 114 mm Series
44 mm
Swing
Swing
48" Door Opening (Max.) Pull Arm 5-3/4" Operator 2-3/18" from bottom 6-3/4" 171 mm 5-3/4" 146 mm Operator Senior Swing
2-3/4" Assembly 146 mm of door stop
70 mm Swing Swing
Operator Operator
1" Push Arm 1" Mounting details
25 mm Assembly 25 mm Pull Arm
2-3/4" Secondary Assembly
Butt 17" from 17-3/8" 11-1/2" 70 mm Link
Hinges edge of door Pull Channel 292 mm Door Pull Channel 1-15/16" from top of door Top Jamb Simultaneous
Door
Push Arm Frame Swing Frame Pair Mounting
Assembly Direction
Swing
Door Direction Door
Interior
RH double egress
Double egress applications with safety sensors require LCN 9560 series.
NOTE: Cannot be used with swing clear hinges, pocket pivots or balanced door.

The 18 plate is 1/4" thick and will need to be ordered 3-/1/2"
longer than the header to allow for mounting the angle brackets 4-1/2" Shim behind
to the vertical side jambs. See illustration below. plate by others

Swing
6-3/4" 5-3/4" Operator

The length of universal 18 plate will need to be
ordered 3-1/2" longer than the supplied header
Door opening width Universal
1-3/4" & length of header 18 plate
Install the plate securely to the frame Hollow
using field generated mounting holes Metal Frame
Bottom of frame rabbet
& botom of 18 plate
Stop

Hollow metal frame
Suggested Installation.

Butt Hinges Should not exceed 5˝ (127 mm) in width
Reveal for push Should not exceed 10˝ (254 mm) for REGULAR ARM and 20˝ (508 mm) for LONG ARM
Reveal for pull Should not exceed 4˝ (102 mm)
Reveal Double egress installations should not exceed 4˝ (102 mm)
Head Frame n Minimum 1-3/4˝ (44 mm)
n Face frame 6-3/4˝ (171 mm) total operator clearance
Top Rail Minimum 2-3/4˝ (70 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds.
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Push N' Go permits non-switch activation with a power boost providing additional latching force
• Electromechanical unit with microprocessor control
• Digital keypad for easy setup
• 72" header length is standard. Specify other length 52" - 98" (push), specify other length 60" - 98" (pull; double egress). Consult factory regarding this option
• Adjustable hold open period of 2 - 32 seconds in automatic or manual mode
• Actuators available separately, see pages 115-131

G105
