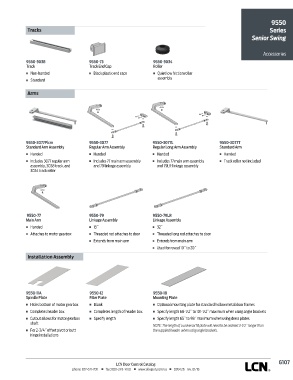

9550
Tracks Series
Senior Swing

Accessories
9550-3038 9550-73 9550-3034
Track Track End Cap Roller
n Non-handed n Black plastic end caps n Quiet low friction roller
n Standard assembly

Arms

9550-3077Plcm 9550-3077 9550-3077L 9550-3077T
Standard Arm Assembly Regular Arm Assembly Regular Long Arm Assembly Standard Arm
n Handed n Handed n Handed n Handed
n Includes 3077 regular arm n Includes 77 main arm assembly n Includes 77 main arm assembly n Track roller not included
assembly, 3038 track, and and 79 linkage assembly and 79LR linkage assembly
3034 track roller

9550-77 9550-79 9550-79LR
Main Arm Linkage Assembly Linkage Assembly
n Handed n 15˝ n 32˝
n Attaches to motor gearbox n Threaded rod attaches to door n Threaded long rod attaches to door
n Extends from main arm n Extends from main arm
n Used for reveal 10˝ to 20˝
Installation Assembly

9550-11A 9550-12 9550-18
Spindle Plate Filler Plate Mounting Plate
n Hides bottom of motor gearbox n Blank n Optional mounting plate for standard hollow metal door frames
n Completes header box n Completes length of header box n Specify length 68-1/2˝ to 101-1/2˝ maximum when using angle brackets
n Cutout allows for motor gearbox n Specify length n Specify length 65˝ to 98˝ maximum when using dress plates.
shaft
NOTE: The length of a universal 18 plate will need to be ordered 3-1/2˝ longer than
n For 2-3/4˝ offset pivot or butt the supplied header when using angle brackets.
hinge installations

G107
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
