9550 4-1/2"
Series 114 mm
Swing
Senior Swing Outgoing Outgoing 171 mm 146 mm Operator 1-7/16" from
6-3/4"
5-3/4"
Push Arm top of door
Assembly

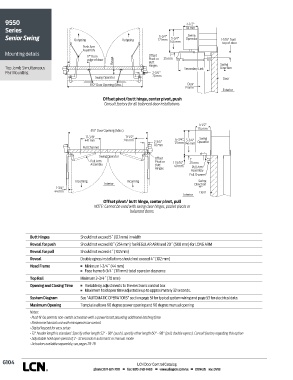

Mounting details 1"
17" from Offset
edge of door Reveal Pivot or 25 mm
Butt
Top Jamb Simultaneous Hinges Secondary Link Swing
Direction
Pair Mounting 2-3/4"
Swing Operator 70 mm Door
8'0" Door Opening (Max.) Door
Frame
Exterior
Offset pivot/butt hinge, center pivot, push
Consult factory for all balanced door installations.

4-1/2"
114 mm
8'0" Door Opening (Max.)
17-3/8" 11-1/2" Swing
6-3/4"
441 mm 291 mm 2-3/4" 171 mm 5-3/4" Operator
70 mm 146 mm
Pull Channel
Swing Operator Offset
Pull Arm Pivot or 1-15/16" 1"
Assembly Butt 49 mm 25 mm
Hinges Pull Arm
Assembly
Pull Channel
Incoming Incoming Swing
Interior Direction
1-3/4"
44 mm Door
Interior
Offset pivot/ butt hinge, center pivot, pull
NOTE: Cannot be used with swing clear hinges, pocket pivots or
balanced doors.

Butt Hinges Should not exceed 5˝ (127 mm) in width
Reveal for push Should not exceed 10˝ (254 mm) for REGULAR ARM and 20˝ (508 mm) for LONG ARM
Reveal for pull Should not exceed 4˝ (102 mm)
Reveal Double egress installations should not exceed 4˝ (102 mm)
Head Frame n Minimum 1-3/4˝ (44 mm)
n Face frame 6-3/4˝ (171 mm) total operator clearance
Top Rail Minimum 2-3/4˝ (70 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds.
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Push N' Go permits non-switch activation with a power boost providing additional latching force
• Electromechanical unit with microprocessor control
• Digital keypad for easy setup
• 72" header length is standard. Specify other length 52" - 98" (push), specify other length 60" - 98" (pull; double egress). Consult factory regarding this option
• Adjustable hold open period of 2 - 32 seconds in automatic or manual mode
• Actuators available separately, see pages 115-131

G104 LCN Door Control Catalog
