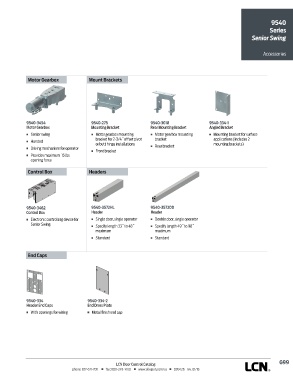

9540
Series
Senior Swing

Accessories

Motor Gearbox Mount Brackets

9540-3454 9540-275 9540-3018 9540-334-1
Motor Gearbox Mounting Bracket Rear Mounting Bracket Angled Bracket
n Senior swing n Motor gearbox mounting n Motor gearbox mounting n Mounting bracket for surface
bracket for 2-3/4˝ offset pivot bracket applications (includes 2
n Handed
or butt hinge installations mounting brackets)
n Driving mechanism for operator n Rear bracket
n Front bracket
n Provides maximum 15 lbs
opening force
Control Box Headers

9540-3462 9540-3572HL 9540-3572DD
Control Box Header Header
n Electronic controlling device for n Single door, single operator n Double door, single operator
Senior Swing n Specify length 33˝ to 48˝ n Specify length 49˝ to 98˝
maximum maximum
n Standard n Standard

End Caps

9540-334 9540-334-2
Header End Caps End Dress Plate
n With openings for wiring n Metal finish end cap

G99
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
