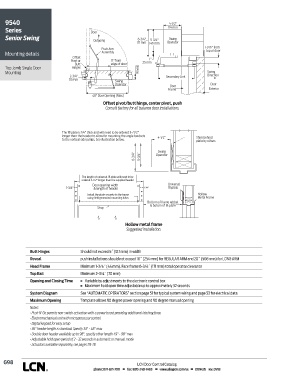

9540 4-1/2"
Series Door 114 mm
Senior Swing 6-3/4" Swing
5-3/4"
Outgoing
171 mm 146 mm Operator
1-7/16" from
Push Arm top of door
Mounting details Assembly
Offset 1"
Pivot or 17" from 25 mm
Butt edge of door
Top Jamb Single Door Hinges Reveal
Mounting Swing
2-3/4" Secondary Link Direction
70 mm Swing
Operator Door Door
Frame Exterior
48" Door Opening (Max.)
Offset pivot/butt hinge, center pivot, push
Consult factory for all balance door installations.

The 18 plate is 1/4" thick and will need to be ordered 3-/1/2"
longer than the header to allow for mounting the angle brackets 4-1/2" Shim behind
to the vertical side jambs. See illustration below. plate by others

Swing
6-3/4" 5-3/4" Operator

The length of universal 18 plate will need to be
ordered 3-1/2" longer than the supplied header
Door opening width Universal
1-3/4" & length of header 18 plate
Install the plate securely to the frame Hollow
using field generated mounting holes Metal Frame
Bottom of frame rabbet
& botom of 18 plate
Stop

Hollow metal frame
Suggested Installation.

Butt Hinges Should not exceed 5˝ (127 mm) in width
Reveal push installations should not exceed 10˝ (254 mm) for REGULAR ARM and 20˝ (508 mm) for LONG ARM
Head Frame Minimum 1-3/4˝ (44 mm). Face frame 6-3/4˝ (171 mm) total operator clearance
Top Rail Minimum 2-3/4˝ (70 mm)
Opening and Closing Time n Variable by adjustments to the electronic control box
n Maximum hold open time adjustable up to approximately 32 seconds
System Diagram See “AUTOMATIC OPERATORS” section page 51 for typical system wiring and page 53 for electrical data
Maximum Opening Template allows 90 degree power opening and 90 degree manual opening
Notes:
• Push N' Go permits non-switch activation with a power boost providing additional latching force
• Electromechanical unit with microprocessor control
• Digital keypad for easy setup
• 36" header length is standard. Specify 33" - 48" max
• Double door header available up to 98", specify other length 49" - 98" max
• Adjustable hold open period of 2 - 32 seconds in automatic or manual mode
• Actuators available separately, see pages 115-131

G98 LCN Door Control Catalog
