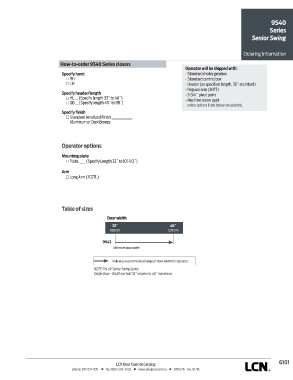

Page 365 - Herrajes Patricios - Catalogo LCN

9540
Series
Senior Swing

Ordering Information

How-to-order 9540 Series closers
Operator will be shipped with:
Specify hand - Standard motor gearbox
RH - Standard control box
LH - Header (at specified length, 36˝ standard)
- Regular arm (3077)
Specify header/length - 2-3/4˝ pivot point
HL __ (Specify length 33˝ to 48˝) - Machine screw pack
DD __ (Specify length 49˝ to 98˝)
unless options listed below are selected.
Specify finish
Standard Anodized Finish ______________
Aluminum or Dark Bronze

Operator options

Mounting plate
Plate, ____ (Specify Length 33˝ to 101-1/2˝)

Arm
Long Arm (3077L)

Table of sizes
Door width
33˝ 48˝
838mm 1219mm
9542
Minimum door width

Indicates recommended range of door width for operator.
NOTE: For all Senior Swing Series.
Single Door - Width per leaf 33˝ minimum, 48˝ maximum.

G101
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
