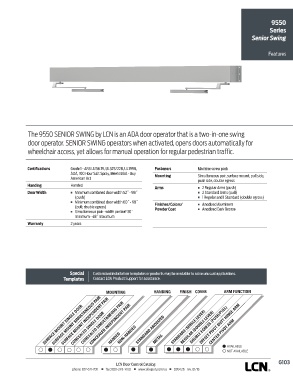

Page 367 - Herrajes Patricios - Catalogo LCN

9550
Series
Senior Swing

Features

The 9550 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing
door operator. SENIOR SWING operators when activated, opens doors automatically for
wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Certifications Grade 1 - ANSI A156.19, UL325/228, UL1998, Fasteners Machine screw pack
ADA, 100 Hour Salt Spray, Meets BAA - Buy Mounting Simultaneous pair, surface mount, pull side,
American Act push side, double egress
Handing Handed
Arms n 2 Regular Arms (push)
Door Width n Minimum combined door width 52˝ - 98˝ n 2 Standard Arms (pull)
(push) n 1 Regular and 1 Standard (double egress)
n Minimum combined door width 60˝ - 98˝ Finishes/Colors/ n Anodized Aluminum
(pull; double egress)
n Simultaneous pair - width per leaf 30˝ Powder Coat n Anodized Dark Bronze
minimum - 48˝ maximum
Warranty 2 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING HANDING FINISH COVER ARM FUNCTION
SURFACE MOUNT SIMULTANEOUS PAIR
SURFACE MOUNT INDEPENDENT PAIR
CONCEALED INDEPENDENT PAIR
SURFACE MOUNT SINGLE DOOR CONCEALED SIMULTANEOUS PAIR NON-HANDED STANDARD ANODIZED STANDARD (SINGLE LEVER) OFFSET PIVOT BUTT HINGE ARM
DOUBLE EGRESS (PUSH/PULL)
REGULAR (DOUBLE LEVER)
CONCEALED SINGLE DOOR
CENTER PIVOT ARM
HANDED
METAL

AVAILABLE
NOT AVAILABLE

G103
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
