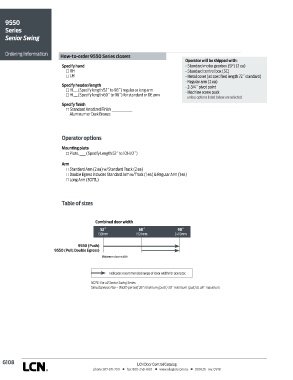

9550
Series
Senior Swing

Ordering Information How-to-order 9550 Series closers
Operator will be shipped with:
Specify hand - Standard motor gearbox (SF) (2 ea)
RH - Standard control box (SC)
LH - Metal cover (at specified length 72˝ standard)
- Regular arm (2 ea)
Specify header/length - 2-3/4˝ pivot point
HL__ (Specify length 52˝ to 98˝) regular or long arm
HL__ (Specify length 60˝ to 98˝) for standard or DE arm - Machine screw pack
unless options listed below are selected
Specify finish
Standard Anodized Finish ______________
Aluminum or Dark Bronze

Operator options

Mounting plate
Plate, ____ (Specify Length 52˝ to 101-1/2˝)

Arm
Standard Arm (2 ea) w/Standard Track (2 ea)
Double Egress includes Standard Arm w/Track (1 ea) & Regular Arm (1 ea)
Long Arm (3077L)

Table of sizes

Combined door width
52˝ 60˝ 98˝
1321mm 1524mm 2489mm

9550 (Push)
9550 (Pull; Double Egress)
Minimum door width

Indicates recommended range of door width for operator.
NOTE: For all Senior Swing Series.
Simultaneous Pair – Width per leaf 26" minimum (push) 30˝ minimum (pull) to 48˝ maximum.
