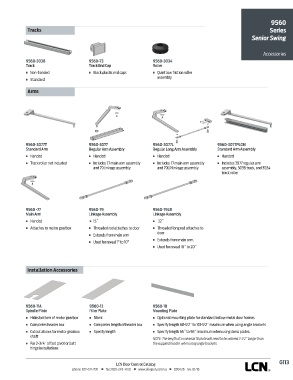

9560
Tracks Series
Senior Swing

Accessories
9560-3038 9560-73 9560-3034
Track Track End Cap Roller
n Non-handed n Black plastic end caps n Quiet low friction roller
assembly
n Standard
Arms

9560-3077T 9560-3077 9560-3077L 9560-3077PLCM
Standard Arm Regular Arm Assembly Regular Long Arm Assembly Standard Arm Assembly
n Handed n Handed n Handed n Handed
n Track roller not included n Includes 77 main arm assembly n Includes 77 main arm assembly n Includes 3077 regular arm
and 79 linkage assembly and 79LR linkage assembly assembly, 3038 track, and 3034
track roller

9560 -77 9560-79 9560-79LR
Main Arm Linkage Assembly Linkage Assembly
n Handed n 15˝ n 32˝
n Attaches to motor gearbox n Threaded rod attaches to door n Threaded long rod attaches to
door
n Extends from main arm
n Extends from main arm.
n Used for reveal 1" to 10"
n Used for reveal 10˝ to 20˝

Installation Accessories

9560-11A 9560-12 9560-18
Spindle Plate Filler Plate Mounting Plate
n Hides bottom of motor gearbox n Blank n Optional mounting plate for standard hollow metal door frames
n Completes header box n Completes length of header box n Specify length 68-1/2˝ to 101-1/2˝ maximum when using angle brackets
n Cutout allows for motor gearbox n Specify length n Specify length 65˝ to 98˝ maximum when using dress plates.
shaft
NOTE: The length of a universal 18 plate will need to be ordered 3-1/2˝ longer than
n For 2-3/4˝ offset pivot or butt the supplied header when using angle brackets.
hinge installations

G113
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
