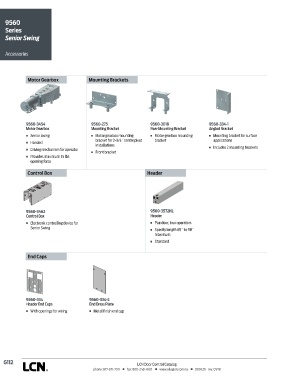

9560
Series
Senior Swing

Accessories

Motor Gearbox Mounting Brackets

9560-3454 9560-275 9560-3018 9560-334-1
Motor Gearbox Mounting Bracket Rear Mounting Bracket Angled Bracket
n Senior swing n Motor gearbox mounting n Motor gearbox mounting n Mounting bracket for surface
n Handed bracket for 2-3/4˝ center pivot bracket applications
installations n Includes 2 mounting brackets
n Driving mechanism for operator
n Front bracket
n Provides maximum 15 lbs
opening force

Control Box Header

9560-3462 9560-3572HL
Control Box Header
n Electronic controlling device for n Pair door, two operators
Senior Swing n Specify length 65˝ to 98˝
maximum
n Standard

End Caps

9560-334 9560-334-2
Header End Caps End Dress Plate
n With openings for wiring n Metal finish end cap

G112 LCN Door Control Catalog
