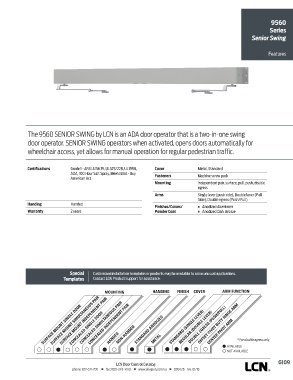

9560
Series
Senior Swing

Features

The 9560 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing
door operator. SENIOR SWING operators when activated, opens doors automatically for
wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Certifications Grade 1 - ANSI A156.19, UL325/228, UL1998, Cover Metal, Standard
ADA, 100 Hour Salt Spray, Meets BAA - Buy Fasteners Machine screw pack
American Act
Mounting Independent pair, surface, pull, push, double
egress
Arms Single lever (push side), Double lever (Pull
Side), Double egress (Push/Pull)
Handing Handed
Finishes/Colors/ n Anodized Aluminum
Warranty 2 years Powder Coat n Anodized Dark Bronze

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING HANDING FINISH COVER ARM FUNCTION
SURFACE MOUNT SIMULTANEOUS PAIR
SURFACE MOUNT INDEPENDENT PAIR
CONCEALED INDEPENDENT PAIR
SURFACE MOUNT SINGLE DOOR CONCEALED SIMULTANEOUS PAIR NON-HANDED STANDARD ANODIZED STANDARD (SINGLE LEVER) OFFSET PIVOT BUTT HINGE ARM
DOUBLE EGRESS (PUSH/PULL)
REGULAR (DOUBLE LEVER)
CONCEALED SINGLE DOOR
CENTER PIVOT ARM
HANDED
METAL
* For double egress only.
AVAILABLE
NOT AVAILABLE

G109
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
