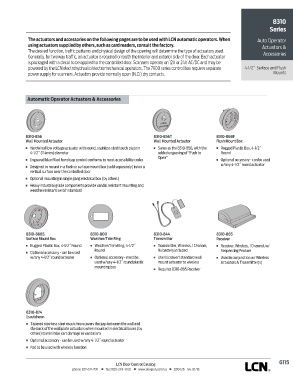

8310
Series

The actuators and accessories on the following pages are to be used with LCN automatic operators. When Auto Operator
using actuators supplied by others, such as card readers, consult the factory. Actuators &
The desired function, traffic patterns and physical design of the opening will determine the type of actuators used. Accessories
Generally, for twoway traffic, an actuator is required on both the interior and exterior side of the door. Each actuator
is packaged with a decal to be applied to the controlled door. Scanners operate on 12V or 24V AC/DC and may be
powered by the LCN electrohydraulic/electromechanical operators. The 7900 series control box requires separate 4-1/2˝ Surface and Flush
power supply for scanners. Actuators provide normally open (N.O.) dry contacts. Mounts

Automatic Operator Actuators & Accessories

8310-856 8310-856T 8310-868F
Wall Mounted Actuator Wall Mounted Actuator Flush Mount Box
n Hardwired low voltage actuator with round, stainless steel touch plate in n Same as the 8310-856, with the n Rugged Plastic Box, 4-1/2˝
4-1/2˝ (114mm) diameter added engraving of “Push to Round
Open”
n Engraved blue filled handicap symbol conforms to most accessibility codes n Optional accessory - can be used
n Designed to mount in a flush or surface mount box (sold separately) in/on a w/any 4-1/2˝ round actuator
vertical surface near the controlled door
n Optional mounting in single gang electrical box (by others)
n Heavy industrial grade components provide vandal resistant mounting and
weather resistant switch standard

8310-868S 8310-800 8310-844 8310-865
Surface Mount Box Weather/Trim Ring Transmitter Receiver
n Rugged Plastic Box, 4-1/2˝ Round n Weather/Trim Ring, 4-1/2˝ n Transmitter, Wireless, 1 Channel, n Receiver, Wireless, 1 Channel, w/
n Optional accessory - can be used Round 9v battery included Sequencing Feature
w/any 4-1/2˝ round actuator n Optional accessory - must be n Use to convert standard wall n Used in conjunction w/ Wireless
used w/any 4-1/2˝ round plastic mount actuator to wireless Actuators & Transmitter(s)
mounting box
n Requires 8310-865 Receiver

8310-874
Escutcheon
n Tapered stainless steel escutcheon covers the gap between the wall and
the back of the wall plate actuators when mounted in electrical boxes (by
others) to minimize cart damage or vandalism
n Optional accessory - can be used w/any 4-1/2˝ round actuator
n Not to be used with wireless function

G115
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
