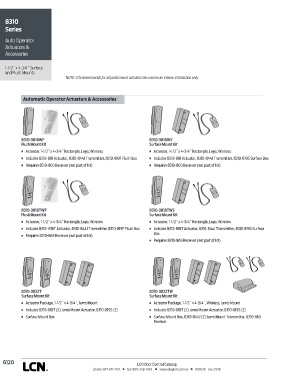

8310
Series

Auto Operator
Actuators &
Accessories

1-1/2˝ x 4-3/4˝ Surface
and Flush Mounts
NOTE: LCN recommends for all jamb mount actuators be used on an interior installation only.

Automatic Operator Actuators & Accessories

8310-3818WF 8310-3818WS
Flush Mount Kit Surface Mount Kit
n Actuator, 1-1/2˝ x 4-3/4˝ Rectangle, Logo, Wireless n Actuator, 1-1/2˝ x 4-3/4˝ Rectangle, Logo, Wireless
n Includes 8310-818 Actuator, 8310-844J Transmitter, 8310-819F Flush Box n Includes 8310-818 Actuator, 8310-844J Transmitter, 8310-819S Surface Box
n Requires 8310-865 Receiver (not part of kit) n Requires 8310-865 Receiver (not part of kit)

8310-3818TWF 8310-3818TWS
Flush Mount Kit Surface Mount Kit
n Actuator, 1-1/2˝ x 4-3/4˝ Rectangle, Logo, Wireless n Actuator, 1-1/2˝ x 4-3/4˝ Rectangle, Logo, Wireless
n Includes 8310- 818T Actuator, 8310-844J Transmitter, 8310-819F Flush Box n Includes 8310-818T Actuator, 8310-844J Transmitter, 8310-819S Surface
n Requires 8310-865 Receiver (not part of kit) Box
n Requires 8310-865 Receiver (not part of kit)

8310-3822T 8310-3822TW
Surface Mount Kit Surface Mount Kit
n Actuator Package, 1-1/2˝ x 4-3/4˝, Jamb Mount n Actuator Package, 1-1/2˝ x 4-3/4˝, Wireless, Jamb Mount
n Includes 8310-818T (2) Jamb Mount Actuator, 8310-819S (2) n Includes 8310-818T (2) Jamb Mount Actuator, 8310-819S (2)
n Surface Mount Box n Surface Mount Box, 8310-844J (2) Jamb Mount Transmitter, 8310-865
Receiver

G120 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
