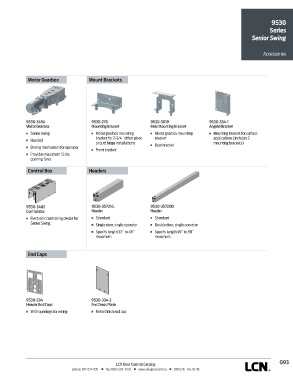

9530
Series
Senior Swing

Accessories

Motor Gearbox Mount Brackets

9530-3454 9530-275 9530-3018 9530-334-1
Motor Gearbox Mounting Bracket Rear Mounting Bracket Angled Bracket
n Senior swing n Motor gearbox mounting n Motor gearbox mounting n Mounting bracket for surface
n Handed bracket for 2-3/4˝ offset pivot bracket applications (includes 2
or butt hinge installations n Rear bracket mounting brackets)
n Driving mechanism for operator
n Front bracket
n Provides maximum 15 lbs
opening force

Control Box Headers

9530-3462 9530-3572HL 9530-3572DD
Control Box Header Header
n Electronic controlling device for n Standard n Standard
Senior Swing n Single door, single operator n Double door, single operator
n Specify length 33˝ to 48˝ n Specify length 49˝ to 98˝
maximum maximum

End Caps

9530-334 9530-334-2
Header End Caps End Dress Plate
n With openings for wiring n Metal finish end cap

G93
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
