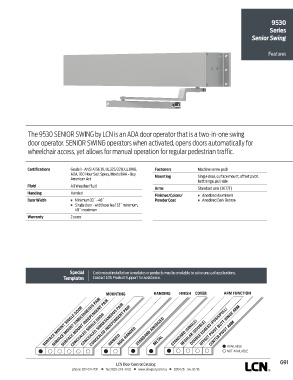

9530
Series
Senior Swing

Features

The 9530 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing
door operator. SENIOR SWING operators when activated, opens doors automatically for
wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Certifications Grade 1 - ANSI A156.19, UL325/228, UL1998, Fasteners Machine screw pack
ADA, 100 Hour Salt Spray, Meets BAA - Buy Mounting Single door, surface mount, offset pivot.
American Act
butt hinge, pull side
Fluid All Weather Fluid Arms Standard arm (3077T)
Handing Handed
Finishes/Colors/ n Anodized Aluminum
Door Width n Minimum 33˝ - 48˝ Powder Coat n Anodized Dark Bronze
n Single door - width per leaf 33˝ minimum,
48˝ maximum
Warranty 2 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING HANDING FINISH COVER ARM FUNCTION
SURFACE MOUNT SIMULTANEOUS PAIR
SURFACE MOUNT INDEPENDENT PAIR
CONCEALED INDEPENDENT PAIR
SURFACE MOUNT SINGLE DOOR CONCEALED SIMULTANEOUS PAIR NON-HANDED STANDARD ANODIZED STANDARD (SINGLE) OFFSET PIVOT BUTT HINGE ARM
DOUBLE EGRESS (PUSH/PULL)
CONCEALED SINGLE DOOR
REGULAR (DOUBLE)
CENTER PIVOT ARM

HANDED
METAL
AVAILABLE
NOT AVAILABLE

G91
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
