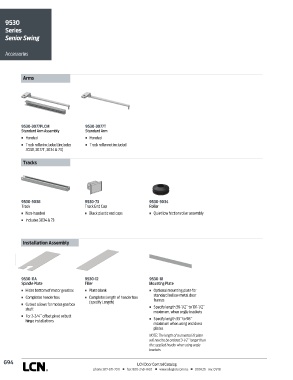

9530
Series
Senior Swing

Accessories

Arms

9530-3077PLCM 9530-3077T
Standard Arm Assembly Standard Arm
n Handed n Handed
n Track roller included (includes n Track roller not included
3038, 3077T, 3034 & 73)

Tracks

9530-3038 9530-73 9530-3034
Track Track End Cap Roller
n Non-handed n Black plastic end caps n Quiet low friction roller assembly
n Includes 3034 & 73

Installation Assembly

9530-11A 9530-12 9530-18
Spindle Plate Filler Mounting Plate
n Hides bottom of motor gearbox n Plate blank n Optional mounting plate for
standard hollow metal door
n Completes header box n Completes length of header box frames
n Cutout allows for motor gearbox (specify Length)
shaft n Specify length 36-1/2˝ to 101-1/2˝
maximum, when angle brackets
n For 2-3/4˝ offset pivot or butt n Specify length 33˝ to 98˝
hinge installations
maximum when using end dress
plates
NOTE: The length of a universal 18 plate
will need to be ordered 3-1/2˝ longer than
the supplied header when using angle
brackets

G94 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
