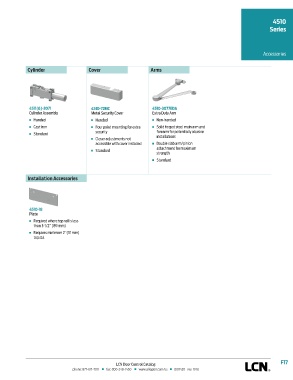

4510
Series

Accessories

Cylinder Cover Arms

4511(6)-3071 4510-72MC 4510-3077EDA
Cylinder Assembly Metal Security Cover Extra Duty Arm
n Handed n Handed n Non-handed
n Cast iron n Four point mounting for extra n Solid forged steel main arm and
n Standard security forearm for potentially abusive
installations
n Closer adjustments not
accessible with cover installed n Double slab arm/pinion
attachment for maximum
n Standard
strength
n Standard

Installation Accessories

4510-18
Plate
n Required where top rail is less
than 3-1/2˝ (89 mm)
n Requires minimum 2˝(51 mm)
top rail

F17
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
