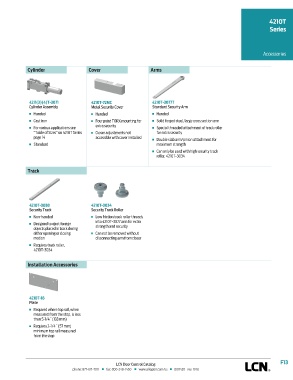

Page 255 - Herrajes Patricios - Catalogo LCN

4210T
Series

Accessories

Cylinder Cover Arms

4211(3)(4)T-3071 4210T-72MC 4210T-3077T
Cylinder Assembly Metal Security Cover Standard Security Arm
n Handed n Handed n Handed
n Cast iron n Four point TORX mounting for n Solid forged steel, large cross section arm
n For various applications see extra security n Special threaded attachment of track roller
“Table of Sizes” on 4210T Series n Closer adjustments not for extra security
page 14 accessible with cover installed n Double slab arm/pinion attachment for
n Standard maximum strength
n Can only be used with high security track
roller, 4210T-3034

Track

4210T-3038 4210T-3034
Security Track Security Track Roller
n Non-handed n Low friction track roller threads
n Designed to eject foreign into 4210T-3077 arm for extra
objects placed in track during strength and security
either opening or closing n Can not be removed without
motion disconnecting arm from closer
n Requires track roller,
4210T-3034

Installation Accessories

4210T-18
Plate
n Required where top rail, when
measured from the stop, is less
than 5-1/4˝ (133 mm)
n Requires 2-1/4˝ (57 mm)
minimum top rail measured
from the stop

F13
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
