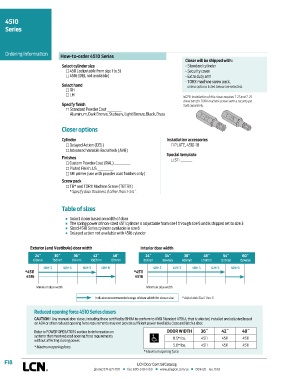

4510
Series

Ordering Information How-to-order 4510 Series
Closer will be shipped with:
Select cylinder size - Standard cylinder
4511 (adjustable from size 1 to 5) - Security cover
4516 (DEL not available) - Extra duty arm
- TORX machine screw pack,
Select hand unless options listed below are selected.
RH
LH NOTE: Installation of this closer requires T-27 and T-25
driver bits for TORX machine screws with a security pin.
Specify finish Sold separately.
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer options

Cylinder Installation accessories
Delayed Action (DEL) PLATE, 4510-18
Advanced Variable Backcheck (AVB)
Special template
Finishes ST- ________
Custom Powder Coat (RAL) ___________
Plated Finish, US ___________
SRI primer (use with powder coat finishes only)
Screw pack
TB* and TORX Machine Screw (TBTRX)
* Specify door thickness if other than 1-3/4˝.

Table of sizes

n Select closer based on width of door
n The spring power of non-sized 4511 cylinder is adjustable from size 1 through size 5 and is shipped set to size 3
n Sized 4510 Series cylinder available in size 6
n Delayed action not available with 4516 cylinder

Exterior (and Vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 48˝ 24˝ 34˝ 38˝ 48˝ 54˝ 60˝
610mm 762mm 914mm 1067mm 1219mm 610mm 864mm 965mm 1219mm 1372mm 1524mm
size 3 size 4 size 5 size 6 size 2 size 3 size 4 size 5 size 6
*4511 *4511
4516 4516

Minimum door width Minimum door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 5

Reduced opening force 4510 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements 8.5* lbs. 4511 4511 4511
without affecting closing power.
* Maximum opening force. 5.0* lbs. 4511 4511 4511
* Maximum opening force.
