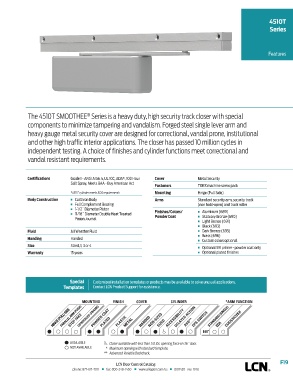

4510T
Series

Features

®
The 4510T SMOOTHEE Series is a heavy duty, high security track closer with special
components to minimize tampering and vandalism. Forged steel single lever arm and
heavy gauge metal security cover are designed for correctional, vandal prone, institutional
and other high traffic interior applications. The closer has passed 10 million cycles in
independent testing. A choice of finishes and cylinder functions meet correctional and
vandal resistant requirements.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Cover Metal Security
Salt Spray, Meets BAA - Buy American Act
Fasteners TORX machine screw pack
*4511T cylinder meets ADA requirements Mounting Hinge (Pull Side)
Body Construction n Cast Iron Body Arms Standard security arm, security track
n Full Complement Bearing (non hold-open) and track roller
n 1-1/2˝ Diameter Piston Finishes/Colors/ n Aluminum (689)
n 11/16˝ Diameter Double Heat Treated Powder Coat n Statuary Bronze (690)
Pinion Journal
n Light Bronze (691)
n Black (693)
Fluid All Weather Fluid n Dark Bronze (695)
n Brass (696)
Handing Handed n Custom colors optional
Size Sized, 1, 3 or 4 n Optional SRI primer - powder coat only
Warranty 15 years n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
PARALLEL ARM (PUSH)
DELAYED ACTION
HINGE (PULL) SIDE STOP FACE CONCEALED (FRAME) PLATED PLASTIC METAL HANDED NON-SIZED SIZED ACCESSIBILITY AVB** DPS SWITCH STANDARD (SINGLE) CUSH/HCUSH
POWDER COAT
EDA
180

AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE * Maximum opening with standard template.
** Advanced Variable Backcheck.

F19
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
