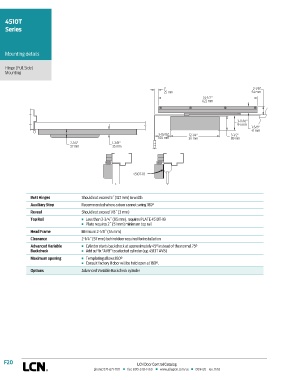

4510T
Series

Mounting details

Hinge (Pull Side)
Mounting

1" 2-1/8"
25 mm 54 mm
24-1/2"
622 mm

3-11/16"
94 mm
1-5/8"
41 mm
3-15/16" 12-1/4" 3-1/2"
100 mm 311 mm 89 mm
2-1/4" 1-3/8"
57 mm 35 mm

4510T-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended where a door cannot swing 180°
Reveal Should not exceed 1/8˝ (3 mm)
Top Rail n Less than 3-3/4˝ (95 mm), requires PLATE 4510T-18
n Plate requires 2˝ (51 mm) minimum top rail
Head Frame Minimum 2-1/8˝ (54 mm)
Clearance 2-1/4˝ (57 mm) behind door required for installation
Advanced Variable n Cylinder starts backcheck at approximately 45° instead of the normal 75°
Backcheck n Add suffix “AVB” to selected cylinder (eg. 4513T AVB)
Maximum opening n Templating allows 180°
n Consult factory if door will be held open at 180°.
Options Advanced Variable Backcheck cylinder

F20 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
