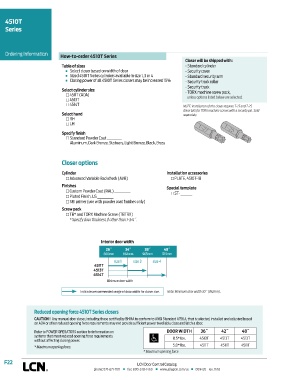

4510T
Series

Ordering Information How-to-order 4510T Series
Closer will be shipped with:
Table of sizes - Standard cylinder
n Select closer based on width of door - Security cover
n Sized 4510T Series cylinders available in size 1, 3 or 4 - Standard security arm
n Closing power of all 4510T Series closers may be increased 15% - Security track roller
- Security track
Select cylinder size
4511T (ADA) - TORX machine screw pack,
4513T unless options listed below are selected.
4514T NOTE: Installation of this closer requires T-27 and T-25
driver bits for TORX machine screws with a security pin. Sold
Select hand separately.
RH
LH
Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer options

Cylinder Installation accessories
Advanced Variable Backcheck (AVB) PLATE, 4510T-18
Finishes Special template
Custom Powder Coat (RAL) ___________ ST- ________
Plated Finish, US ___________
SRI primer (use with powder coat finishes only)
Screw pack
TB* and TORX Machine Screw (TBTRX)
* Specify door thickness if other than 1-3/4˝.

Interior door width
26˝ 34˝ 38˝ 48˝
660mm 864mm 965mm 1219mm
size 1 size 3 size 4
4511T
4513T
4514T
Minimum door width

Indicates recommended range of door width for closer size. Note: Minimum door width 30˝ (762mm).

Reduced opening force 4510T Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements 8.5* lbs. 4513T 4513T 4513T
without affecting closing power.
* Maximum opening force. 5.0* lbs. 4511T 4511T 4511T
* Maximum opening force.

F22 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
