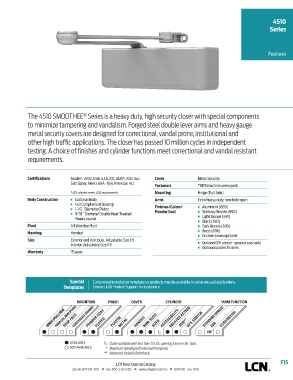

4510
Series

Features

®
The 4510 SMOOTHEE Series is a heavy duty, high security closer with special components
to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge
metal security covers are designed for correctional, vandal prone, institutional and
other high traffic applications. The closer has passed 10 million cycles in independent
testing. A choice of finishes and cylinder functions meet correctional and vandal resistant
requirements.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Cover Metal Security
Salt Spray, Meets BAA - Buy American Act
Fasteners TORX machine screw pack
*4511 cylinder meets ADA requirements Mounting Hinge (Pull Side)
Body Construction n Cast Iron Body Arms Extra heavy duty, non-hold open
n Full Complement Bearing Finishes/Colors/ n Aluminum (689)
n 1-1/2˝ Diameter Piston Powder Coat n Statuary Bronze (690)
n 11/16˝ Diameter Double Heat Treated n Light Bronze (691)
Pinion Journal
n Black (693)
Fluid All Weather Fluid n Dark Bronze (695)
n Brass (696)
Handing Handed
n Custom colors optional
Size Exterior and Vestibule, Adjustable Size 1-5
Interior, Adjustable Size 1-5 n Optional SRI primer - powder coat only
n Optional plated finishes
Warranty 15 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
PARALLEL ARM (PUSH)
DELAYED ACTION
HINGE (PULL) SIDE STOP FACE CONCEALED (FRAME) PLATED PLASTIC METAL HANDED NON-SIZED SIZED ACCESSIBILITY AVB** DPS SWITCH STANDARD (SINGLE) CUSH/HCUSH
POWDER COAT

140 EDA

AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE * Maximum opening with standard template.
** Advanced Variable Backcheck.

F15
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
